Header for 1999-Current Chevrolet Cavalier/Pontiac Sunfire with 2.2 liter OVH engine.

Featuring the same industry leading elements and quality assembly that puts our Quad Four header ahead of all others in the field.

Constructed of heavy 14 gauge aluminized steel pipe, mandrel bent, with heavy flanges and quality welds for long life. Tri-Y header design for these applications is exclusive to Iperformance, ensuring the widest power band and more usable horsepower and torque for the best acceleration at the track or on the street. 1 1/2 inch primary pipes, 2 inch secondary pipes, and 2 1/2 inch collector, for 26% more flow than any other exhaust system for these cars on the market. Two piece construction for easiest installation.

Woven steel flexible joint ensures that the twisting of the engine will not loosen the bolts or crack the pipes, far superior to competitor's designs without this feature which are susceptible to these problems. These headers have two (2) primary O2 sensor fittings. One fitting is mounted high, in the OEM position and meters from two exhaust ports while the second is mounted at the collector where it meters from all four exhaust ports for maximum accuracy. A plug bolt and copper washer is supplied to close off the unused sensor fitting.

Secondary O2 sensor fitting after the catalytic converter as per GM design. Large, high flow, 2 1/2 inch inside diameter Carsound (Magnaflow brand) catalytic converter included, making this the only complete header available for these cars which complies with emissions laws. Header not available without the catalytic converter. We use only Carsound/Magnaflow brand catalytic converters with our headers because lesser quality catalytic converters are not compatible with the ODB II emissions systems of these vehicles and will trigger error codes that will flash the check engine light. 2 1/2 inch mandrel bent, aluminized exhaust pipe for 26% more flow than any other exhaust header for these cars and long service life. High exhaust flow capacity make this header ideal for supercharged and nitrous applications as well as all naturally aspirated engines from mild to wild.

Header offered only as complete unit, not available as individual parts. Offered only as complete unit, not available as individual parts.  All hardware required for installation included: nuts, bolts, washers, lock washers, lock, and clamp needed to assemble the three pieces of the header assembly.

Upper copper header gasket, and lower steel and fiber composite catalytic converter gasket also included. Available with optional ceramic coating . Our ceramic coating is done by Reliable Metal Finishing using Tech Line brand ceramic coatings. Tech Line is the industry leader in ceramic coatings supplying materials to the majority of companies offering ceramic coating service for automotive applications.

For headers, we use a Tri-Coat system consisting of MCS Insulating Coating inside the pipe and MCS Insulating Coating under MCX Cermakrome on the outside of the pipe. The MCS Insulating Coating withstands over 2,400 degrees and drastically reduces under hood temperatures. The MCX Cermakrome combines high heat tolerance and maximum heat insulation with the most durable finish available for superior weather and abrasion resistance. The multiple coatings combine for a finish unmatched by the offerings of any other header manufacturer anywhere.

Please note that the use of header wraps, on any header, accelerates the deterioration of the steel by causing heat fatigue, and will in all cases result in rapid, premature failure of a header.

Please Note: This header has been designed specifically for 99-Current model 2.2 liter OHV engines. Pre 1999 Chevrolet 2.2 liter OHV engines have a different port pattern in the head with different port size and placement on the head face. Pre 1999 2.2 liter OHV engines use a different header flange pattern. Our header for 99-Current 2.2 liter OHV engines is the only header on the market designed specifically for the 99-Current port pattern.

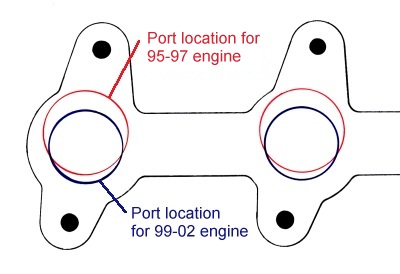

As can be easily seen in this picture of a 1995-97 OEM Chevrolet 2.2 liter OHV exhaust manifold flange placed over a 1999-Current OEM Chevrolet 2,2 liter OHV exhaust manifold flange, while the bolt holes to mount the manifold or header line up, the ports do not. The ports miss completely overlapping by 5/16 inch (.3125 inch) on the top edge and 3/16 inch (.1875 inch) on the lower edge. This mismatch in port placement results in blocking off over 30% of the exhaust port when a 1995-97 header or manifold is used with a 1999-Current head, or when a 1999-Current header or manifold is used with a 1995-1997 head.


Our header flange for the port pattern of the 99-Current 2.2 liter OHV engine and does not fit the 95-97 model engines. 95-97 2.2 liter OHV engine ports are placed higher on the head. Headers made to fit the 95-97 engines will not fit the 99-Current engines without causing significant turbulence in the exhaust erroneously listing a header to fit all 2.2 liter OHV engines, they have not checked the port pattern and are selling you something that does not fit correctly. Our header is the only header designed specifically for the 99-Current 2.2 liter OHV engine.


As can be plainly seen, the ports of the 95-97 2.2 liter OHV engine header do not match up with the ports in the head of the 99-Current 2.2 liter OHV engine, which causes disruption and turbulence in the exhaust flow, increasing back pressure and drastically decreasing exhaust flow efficiency, decreasing power output by the engine. Please Note: This header will not fit the 1998 2.2 liter OHV engine because it is designed to fit the cars with the 1999-Current exhaust down pipe and exhaust system. The 1998 model cars use a different down pipe and different exhaust system. This header can not be used with 1998 model cars unless it is used with our 1996-98 Quad Four cat back exhaust system instead of the 2.2 liter OHV cat back exhaust system.

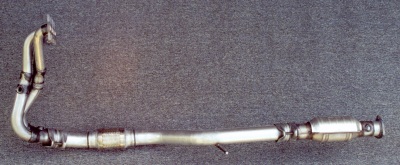

Plain steel header shown, bluish discoloration of the steel is due to the heat of welding the header together. An excellent upgrade replacement for owners headers by RK Sport, RSM Motorsports, Mantapart, or Pacesetter. Please be sure to specify year of car on order form.

Header in plain mild steel finish
PN SHBILL14P..........................$799.00

Header with tri-coat ceramic coated Tri-Y assembly, aluminized collector pipe and catalytic converter
PN SHBILL14C..........................$899.00

This product is currently in production and we will not accept orders or publicly set the price until we have product ready to ship.

Shipping on Iperformance headers for domestic small cars is via UPS Ground and cost is as follows: Continental US (48 states), $70; Hawaii and Alaska, $90; Canada, $110; Outside US and Canada, please email for cost.
